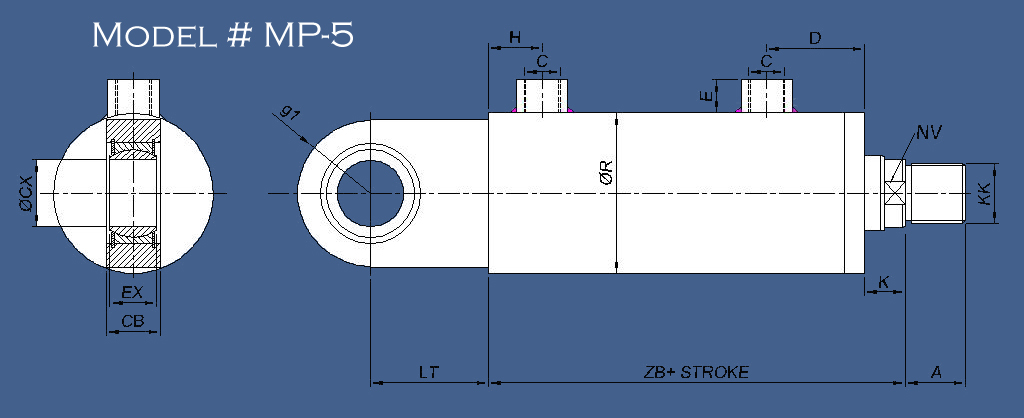

| REAR CLEVIS MP 5 : |
| BORE DIA |
40 |
50 |
63 |
80 |
100 |
125 |
140 |
160 |
180 |
200 |
| ROD DIA |
22/28 |
28/36 |
36/45 |
45/56 |
56/70 |
70/90 |
80/100 |
90/100 |
100/125 |
110/140 |
| ZB |
133 |
156 |
167 |
190 |
210 |
228 |
252 |
295 |
331 |
355 |
| A |
16 |
22 |
28 |
35 |
45 |
45 |
58 |
65 |
80 |
100 |
| C |
G 3/8" |
G 1/2" |
G 1/2" |
G 3/4" |
G 3/4" |
G 1" |
G 1" |
G 1" |
G 1 1/4" |
G 1 1/4" |
| D |
45 |
50 |
55 |
68 |
73 |
80 |
90 |
105 |
122 |
132 |
| E |
16 |
20 |
20 |
25 |
25 |
30 |
30 |
30 |
35 |
35 |
| H |
22 |
28 |
32 |
35 |
40 |
50 |
52 |
65 |
71 |
75 |
| K |
18 |
23 |
25 |
25 |
30 |
30 |
35 |
35 |
40 |
40 |
| CB |
23 |
28 |
30 |
35 |
40 |
40 |
50 |
55 |
60 |
65 |
| PEN CX j6 |
25 |
30 |
35 |
40 |
50 |
50 |
60 |
70 |
80 |
90 |
| EX |
20 |
22 |
25 |
28 |
35 |
35 |
44 |
49 |
55 |
60 |
| KK |
M16X1.5 |
M22X1.5 |
M28X1.5 |
M35X1.5 |
M45X1.5 |
M45X1.5 |
M58X1.5 |
M65X1.5 |
M80X2 |
M100X2 |
| NV |
18 |
24 |
32 |
38 |
48 |
60 |
70 |
75 |
95 |
120 |
| LT |
45 |
51 |
61 |
69 |
88 |
88 |
100 |
115 |
141 |
150 |
| R |
50 |
60 |
75 |
95 |
120 |
150 |
168 |
190 |
217 |
245 |
| g1 |
20 |
25 |
32.5 |
42.5 |
55 |
70 |
75 |
85 |
90 |
113 |
|
|
|
|
